SH-DYC10V
SHST

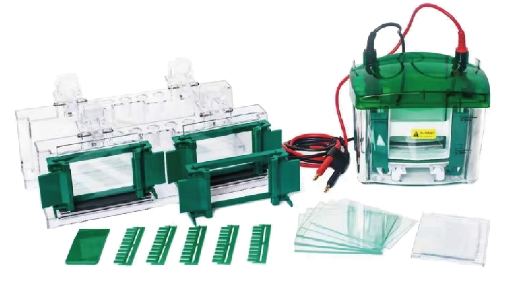

Electrophoresis Vertical Cell (KIT)
Description
The vertical cell KIT (SH-DYC10V) is ideal for protein gel electrophoresis. It accommodates one to four gels and offers flexibility for the research requirements of the users.
Features
Simultaneously run 1-4 precast or hand-cast gels within an hour
High strength PC material with high transparency, able to display the electrophoresis operation status clearly
Thermoplastic casting gaskets build a tight seal with the glass plates to ensure leak-free casting
Works together with SHST’s Transfer cell KIT (SH-ZYZ10T) to transfer the protein from gels to the PVDF membranes
Specifications
Number of gels： 1-4
Gel Size （W x L ）：Precast gel (86x68mm), Hand-cast gel (83x73mm)
Buffer volume: 700ml for 2 gels, 1000ml for 4 gels
Combs:
Standard combs: Thickness 1.0mm, Teeth: 10 , Qty:5
Optional combs: Thickness 1.0mm, Teeth: 15 , Qty:5
Glass plate （W x L）:
Short Plate 101x73 mm
Spacer Plate 101x82mm
